Laser station type AWW
Laser welding of plastics- Diode lasers with power range from 30 to 200W

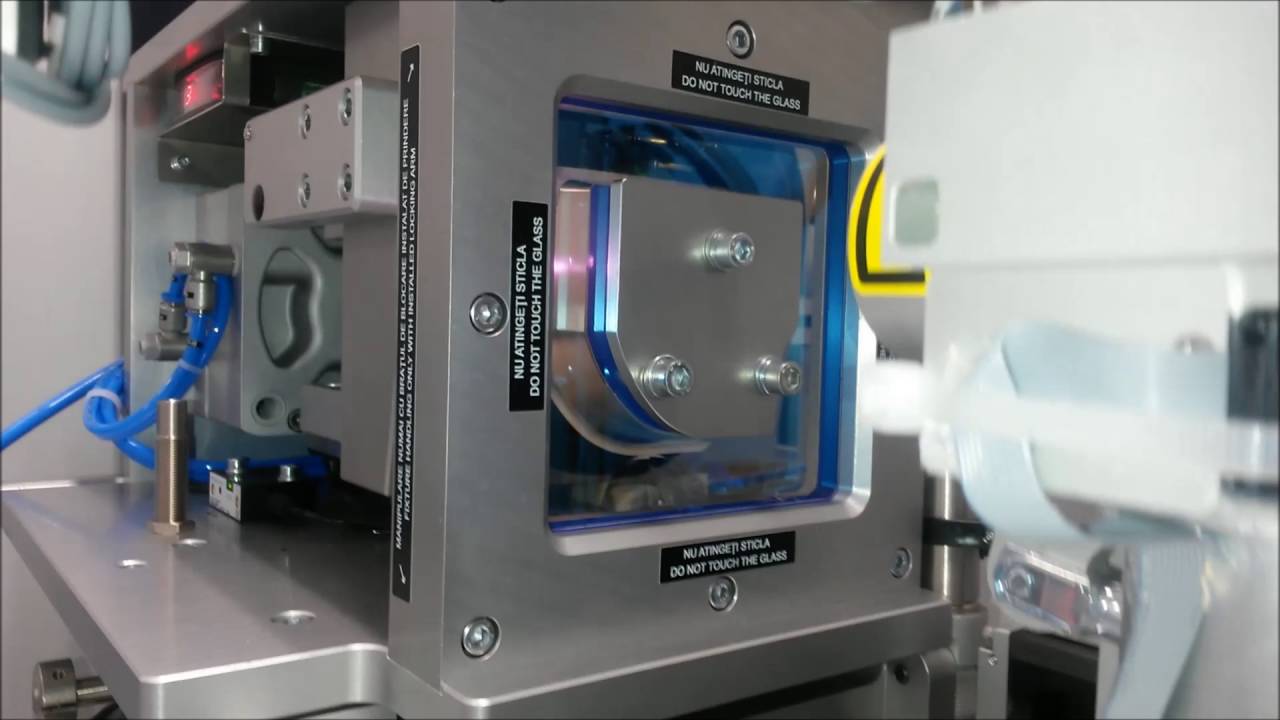

- Compact process head - laser radiation is guided using optical fiber 100 - 400 micrometers
- Semiconductor diode laser emitting on selected wavelength 780 - 980nm optimized for the specific application
- Programmable welding curve profile - weld profile
- Laser power measurement device inside process head for operation in - power regulation mode
- Contactless measurement of temperature in welding spot – temperature regulation mode
- Diameter of focus spot is configurable and could have circle or elliptical form
- Linear, area or circumferential welding (cylindrical parts)
- Alternative head design with scan mirror unit is suitable for applications requiring quasi-simultaneous welding mode

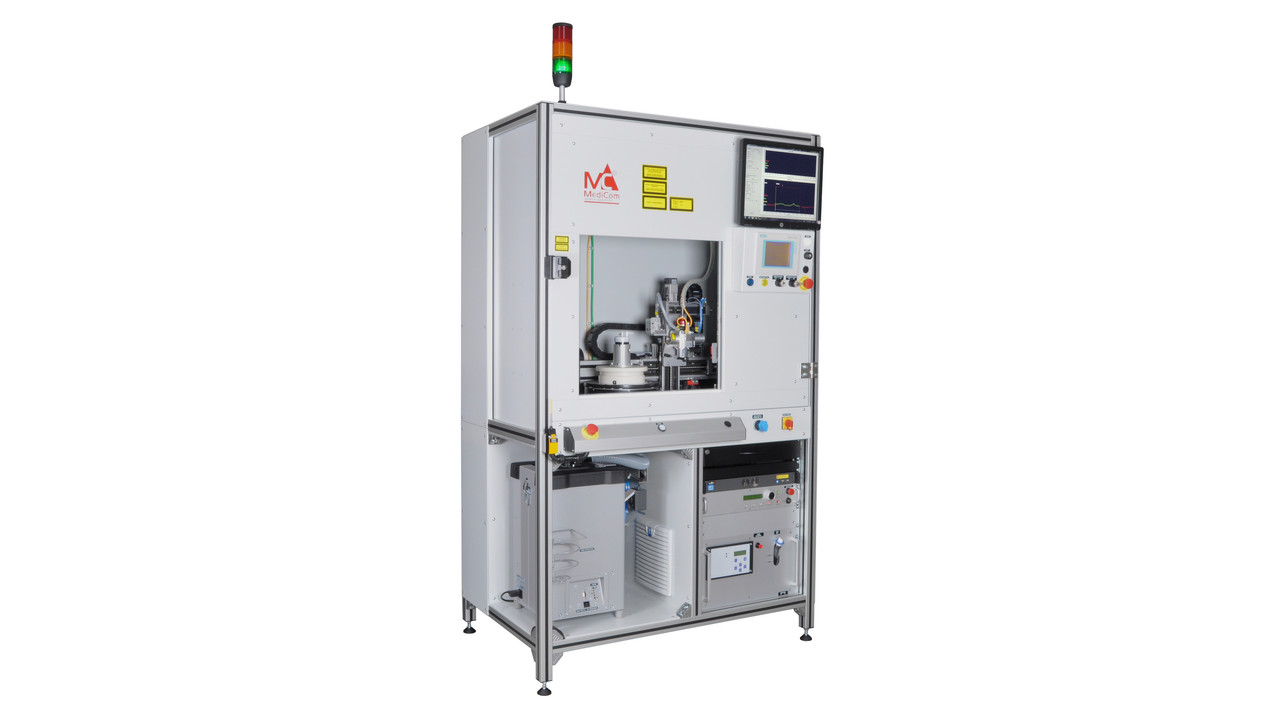

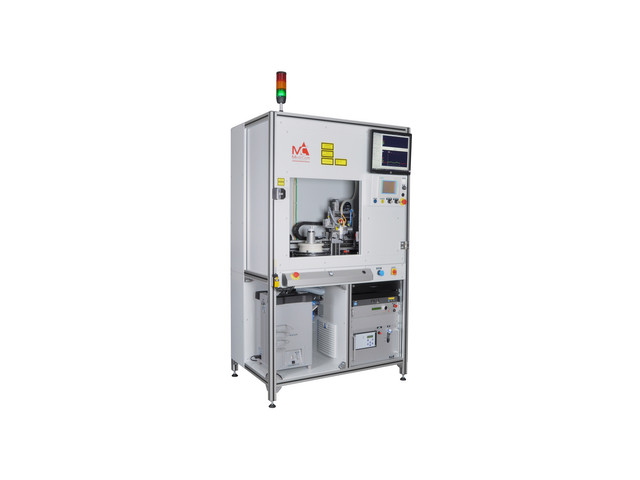

Laser welding station AWW (Automatic Welding Workstation) is primary dedicated for laser welding of plastics. As a laser source is used semiconductor diode laser emitting on selected wavelength optimized for the specific application. Available are sources in power range from 30W up to 200W.
Technical parameters
Type | AWW (Automatic Welding Workstation) | ||||
Laser | semiconductor laser diode | ||||
Laser power | 180 W (35, 50, 70, 100, 200 W)1) | ||||
Drives | servomotors | ||||
Y, Z laser axis stroke | 300 mm | ||||
Power supply | 230 V, 50 Hz | ||||
Compressed air | > 6 bar | ||||
Input | 1800 W | ||||
Station dimensions | 1200 (W) x 2000 (H) x 800 (D) mm | ||||
Station weight | 480 kg | ||||
Cooling | power > 60 W integrated cooling type water-air; power < 70 W direct active air cooling | ||||
Operator panel | touch panelSimatic | ||||
Programmable parameters | 1 – 16 welds with individual parameters power/temperature, weld speed in mm/s, weld profile - welding start and finish, position and length including overlap, process parameters monitoring | ||||
1) alternative or optional design
